RTX3
- Wireless Expansion Module 32 wireless addressable zones
- Maximum number of remote controls: 999 with EVO Series, 32 with Spectra SP Series
- Supports wireless PGMs (8 with EVO Series, 16 with Spectra SP Series only) / SR130 and SR150 Wireless Sirens / all Magellan transmitters including 2WPGM / 2 RPT1 and 8 K37 (Spectra SP Series only)
- Remote control compatibility:
- RAC1, REM15, REM1, REM101, REM2, REM3 and REM25
- 3 PGM outputs and 1 optional output
- PGM outputs: PGM1 and PGM2 - 150 mA PGM transistor outputs
- PGM3 - Form C relay output rated at 5A / 28 Vdc, N.O. / N.C. (PGM4 optional)
- Low battery, tamper and check-in supervision for reconnected modules
- Transmitter signal strength display
- Noise level test and indicator
- RF jamming supervision
- In-field firmware upgradeable via 307USB
- Compatible with EVO Series and Spectra SP Series

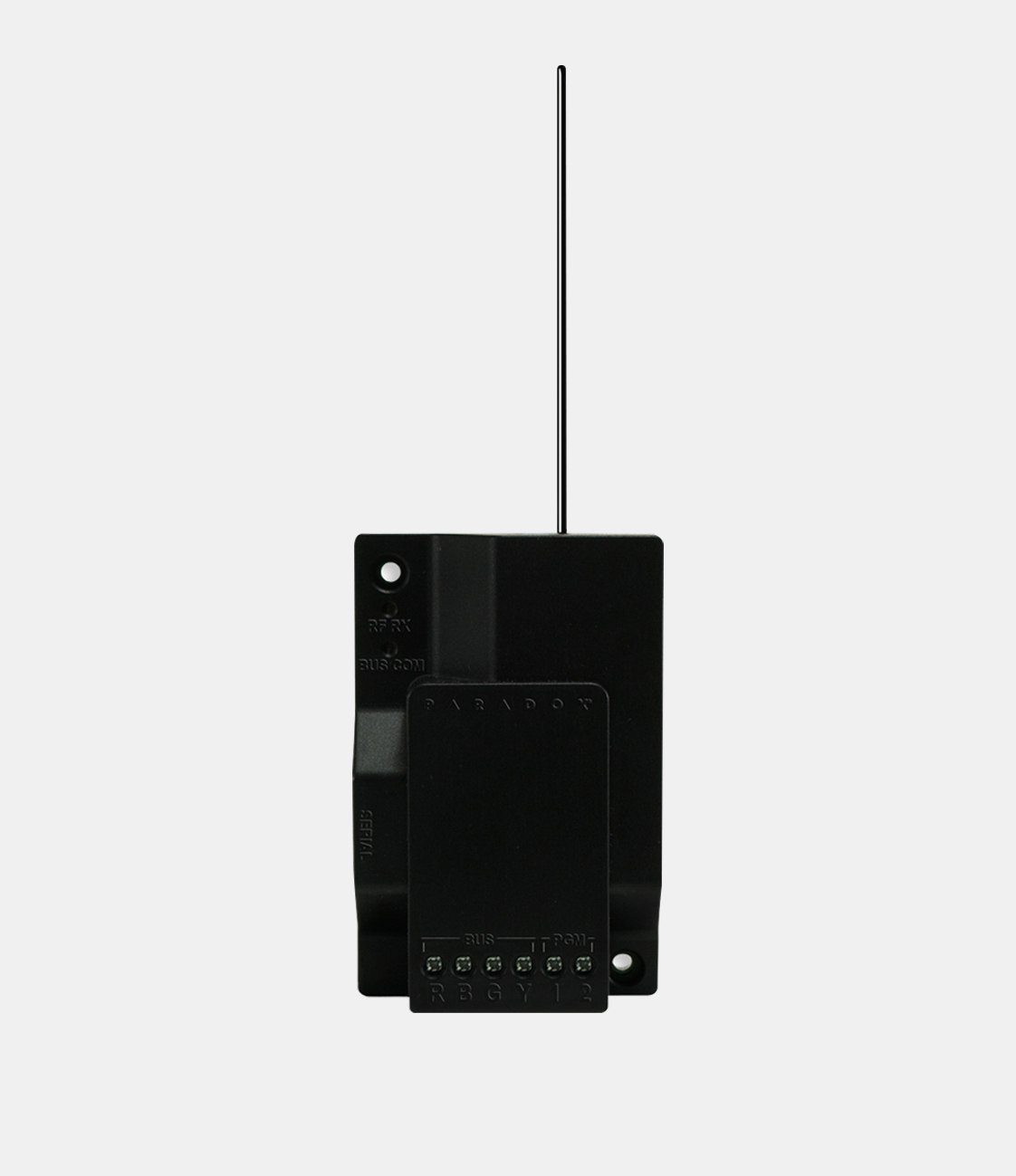

RX1
- Wireless Receiver
- Compatible with SP Series control panels (V4.54 and higher)
- 32 wireless zones (SP Series only)
- Maximum number of remote controls: 32
- Remote control compatibility: REM1, RAC1
- Transmitter compatibility: DCT10, DCTXP2, DCT2, PMD1P, PMD75, PMD85, SD738 (SP only)
- In-field firmware upgradable via In-Field Firmware Upgrade software
- RF jamming supervision
- Low battery, tamper, and check-in supervision
- Transmitter signal strength display
- 2 PGM outputs follow buttons 1 and 2 on REM1/RAC1 (also programmable through the panel)
ZX8SP
- 8-Zone Expansion Module
- Compatible with MG Series, SP Series, and E Series
- Add 8 zones
- 1 PGM output
- Use zone input as an anti-tamper switch input

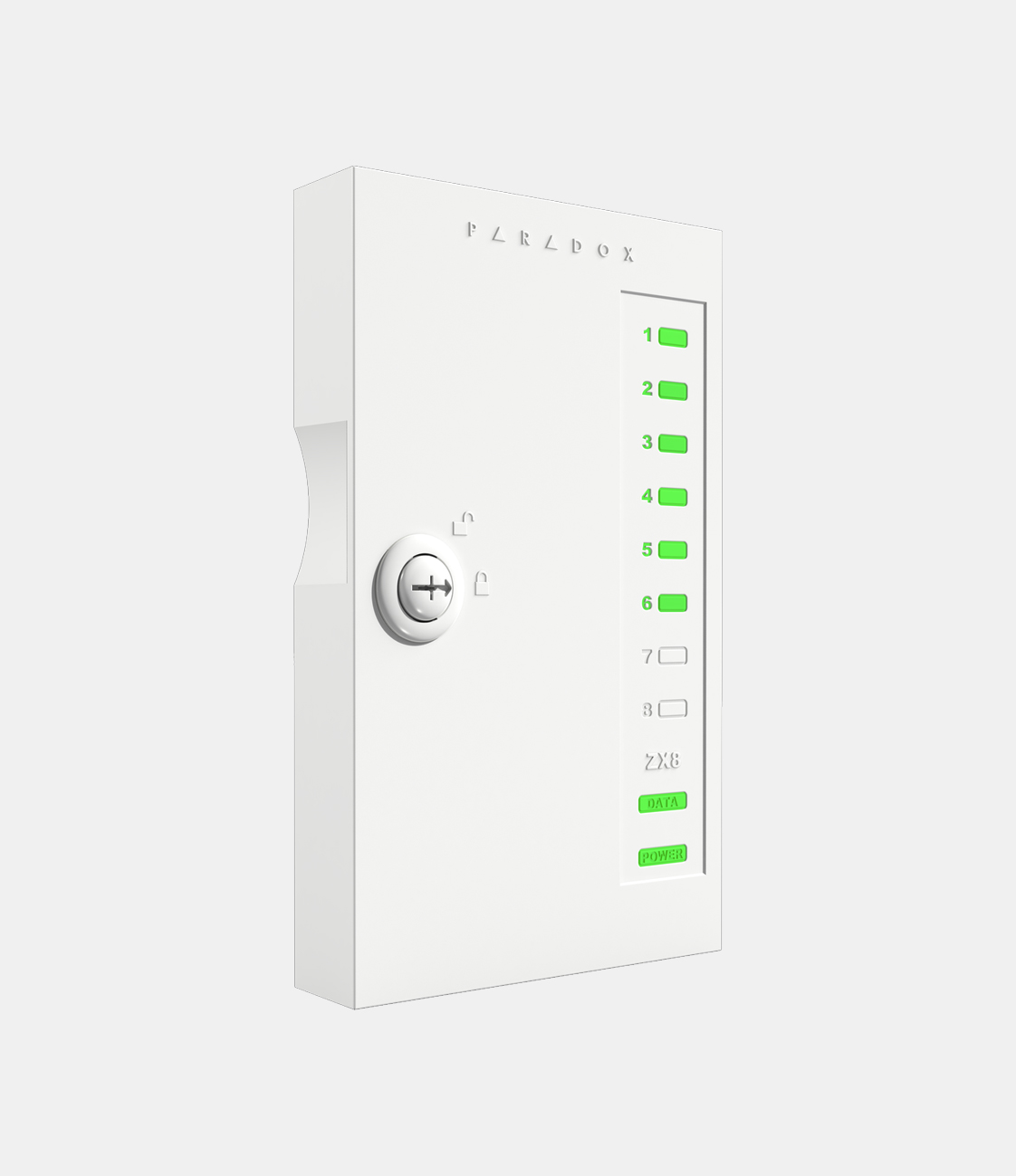

ZX82
- 8-Zone Expansion Module
- Expansion of 8 additional zones (16 with ATZ zone doubling feature)
- Supports SP, MG and EVO
- 4-wire bus connection
- Status LEDs for zones, power and bus data
- Enclosure with cover lock mechanism
- On-board and wall tampers
- Firmware upgradeable
